Description

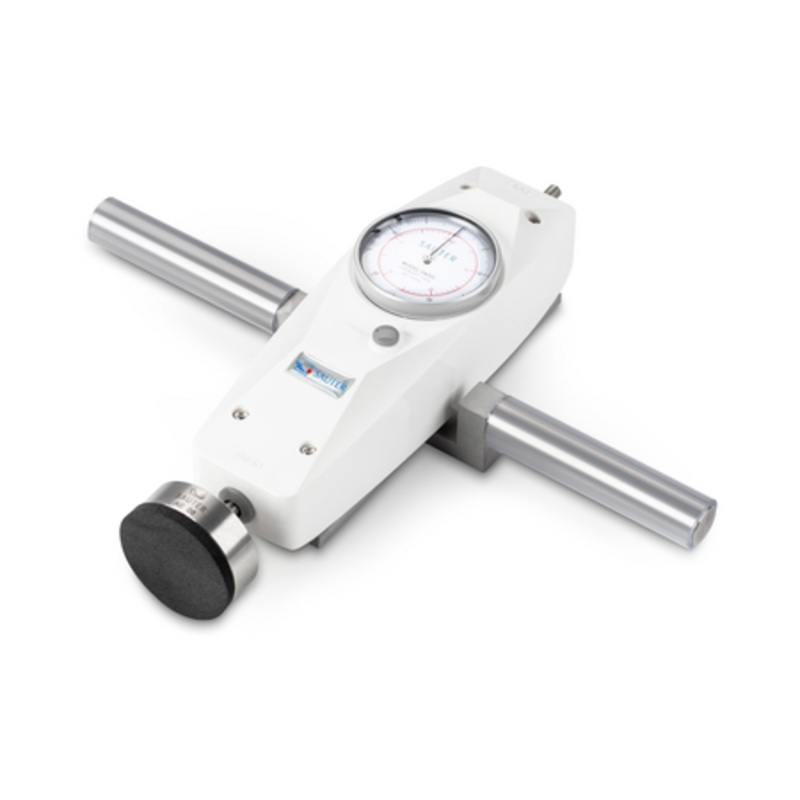

• For testing the stability of tombstones in accordance with VSG 4.7
• Pressure disc with foam rubber attachment
• Stainless steel handle with rubber covering for secure handling
• No electrical power supply required due to mechanical measuring system
• Real time or peak hold switch to observe transients or capture peaks by a drag indicator
• For tensile force and compressive force measurements
• Scope of delivery:
  – 1 FA 500
  – 1 AE 08
  – 1 AFH 04

• Technical Data

  Measuring range force [Max] (N) 500 N Readability force [d] (N) 2,5 N Tolerance (% of [Max]) 1% Peak function Yes Material housing plastic Dimensions completely mounted (WDH) 2326051 mm Net weight approx. 1,8 kg GTIN/EAN number 4045761126787
