• Description

  • LCD touchscreen with touch pen

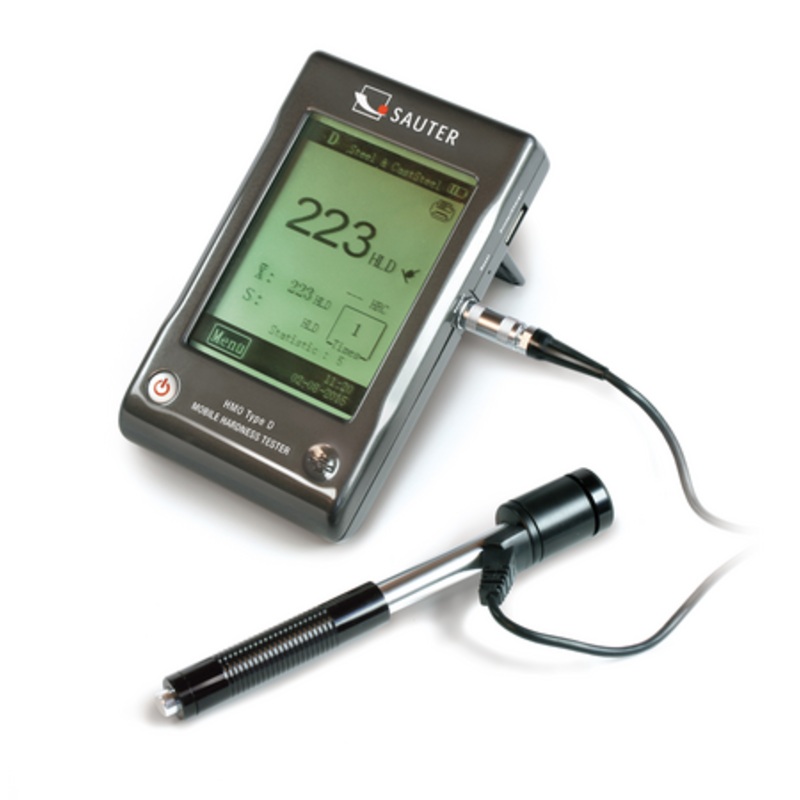

  • Automatic recognition of the impact (rebound) sensor connected to the SAUTER HMO
  • Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMO offers the highest level of mobility and flexibility
  • All measurement directions possible (360) by defining the direction of impact on the device
  • USB socket for connection to the printer and charging the batteries
  • Hardness test block for calibration included
  • Internal datamemoryfor up to 500 values
  • Mini statistics function: Displays the measure value, the average value, the difference between the maximum and minimum values, date and time
  • Measurement value display: (B and C), Vickers (HV), Brinell (HB), Leeb (HL), tensile strength (MPa)
  • Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
  • Delivered in a robust carrying case

Technical Data

Measuring range Leeb 170 960 Readability [d] hardness (Hlx) 1 Tolerance (% of [Max]) 1% Units HL, HV, HB, HRB, HRC, MPa Hardness scales HLD Test object thickness [Min] 3 mm Test object minimum weight [Min] 3 kg Memory function Statistic function Function for averaging Material housing plastic Measuring probe diameter 2 cm Measuring probe length 14,6 cm Test block inclusive Product family HMO GTIN/EAN number 4045761139664
