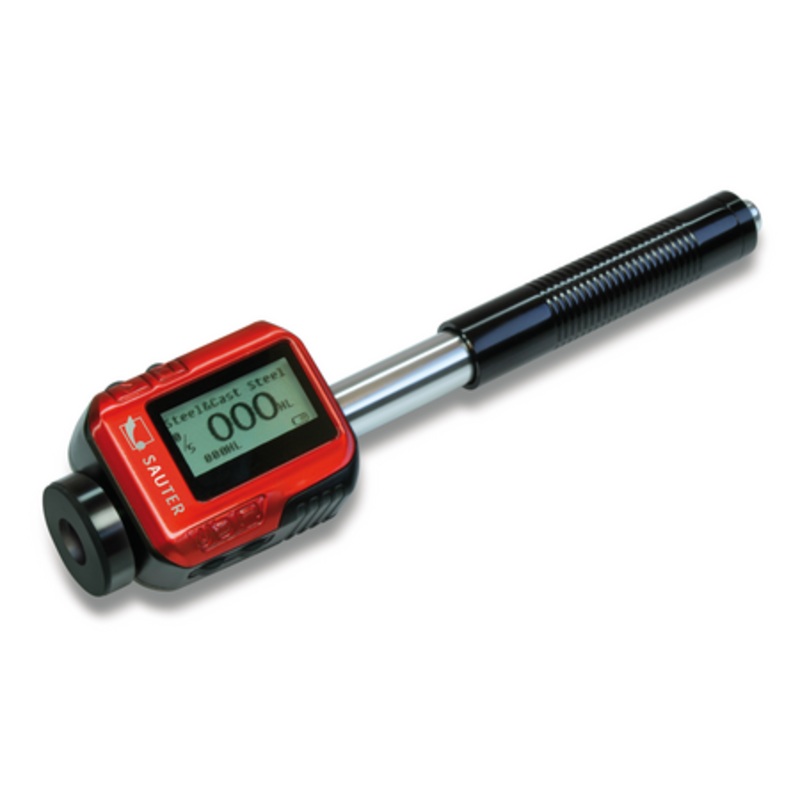

Description

• User-friendly operation: The compact version enables the product to be used in a significantly wider range of applications compared with traditional devices
• The measuring device has been designed for one-hand operation and this allows the user to work more quickly and flexibly
• Modern LCD display: Optimised for industrial applications: increased luminosity and backlight can be switched on, that way the display can be read from any angle
• All measurement directions possible (360) thanks to an automatic compensation function
• Internal impact sensor included (Type D)
• Measurement value display: (B and C), Vickers (HV), Brinell (HB), Leeb (HL)
• Standard block for calibration not included in scope of delivery
• Internal datamemoryfor up to 500 measurements with date and time
• Data interfaceUSB, including USB interface cable
• Delivered in a robust carrying case

Technical Data

Measuring range Leeb 170 960 Readability [d] hardness (Hlx) 1 Tolerance (% of [Max]) 1% Units HL, HV, HB, HRB, HRC Hardness scales HLD Test object thickness [Min] 3 mm Test object minimum weight [Min] 2 kg Statistic function Function for averaging Interfaces USB-Device Material housing cast aluminium, plastic Measuring probe diameter 2 cm Measuring probe length 14,6 cm Product family HN-D GTIN/EAN number 4045761139671
