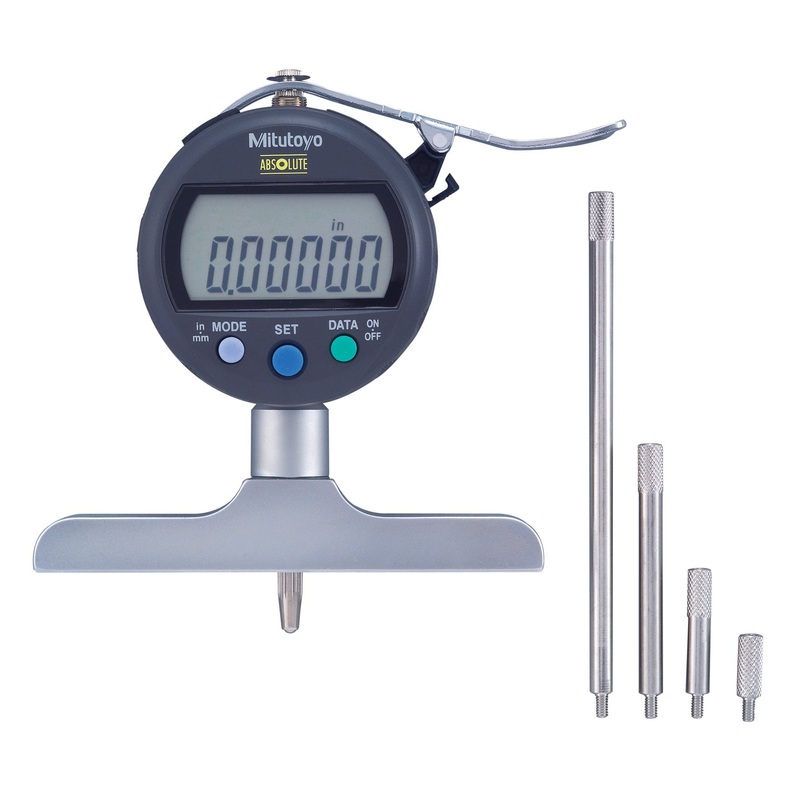

Mitutoyo; Digital Depth Gauge

Digital/Analog: Digital

Inch-Metric: Inch/Metric

Range: 0 – 8 “

Digital step: 0,0005″/0,001 mm

Stroke: 0.6 mm

Accuracy: 0,0002″/ 5 m

Base flatness: 0.00008″/ 2 m

Scale: Capacitance type ABSOLUTE linear encoder

Contact point: Carbide ball, thread: # 4-48UNF

DATA/HOLD: Yes

PRESET: Yes

ON/OFF: Yes

Lock function: Yes

GO/NG judgement: Yes

MAX/MIN/RANGE: Yes

ZERO/ABS: Yes

ABS / INC (INC ZERO): Yes

Alarm: Low voltage, setting errors, sensor error, display overflow a.s.o.

Power supply: 1 battery CR2032 (3V)

Measuring force: 1.5 N

Battery life: Approx. 7000 hours

Delivered: Including box and extensions 0,5, 1, 2, 4″, contact point 21JZA243

Mass: 335 g

Delivered: Including box and extensions 0,5, 1, 2, 4″, contact point 21JZA243

Analog bar resolution selection: Yes

Auto Power OFF setting: Yes

Calculation function (with formula): Yes

Customizing keys: Yes

Counting direction switchable: Yes

Calibration warning function: Yes
