Model A gauges are for general service applications where cost savings are needed. Multiple purpose pressure gauges, competitively priced: pneumatics, hydraulics, plumbing, HVAC, compressors, pumps, pools, etc. Not for use with Oxygen.

PLEASE ALLOW ADDITIONAL TIME FOR SHIPMENT OF THIS PRODUCT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY.

Contact Us regarding informationabout Canadian Registration Numbers (CRN), Custom Branding, Liquid-Fill Options, and more quantity based discounts!

Specifications

Case: Steel, painted black
Dial: White aluminum with psi graduations in black and kPa graduations in blue
Ring: Steel, painted black
Lens: Polycarbonate
Pointer: Steel, painted black
Connection: in nptm or in nptm bottom or center back mount
Wetted parts: Brass
Bourdon tube: Phosphor bronze
Maximum process and ambient temperature: -40 150F / -40 65C
Operating pressure: Maximum 75 % of full scale value
Overpressure limit: 25 % over full scale value
Accuracy: ASME B40.100(B40.1), Grade B 2 %

Click to Enlarge:

Also See:

• Brass Diaphragm 0-200″ WC Pressure Gauges
• Brass Diaphragm Low Pressure Pressure Gauges
• Stainless Steel Diaphragm Low Pressure Gauges
• Industrial Liquid Filled Pressure Gauge

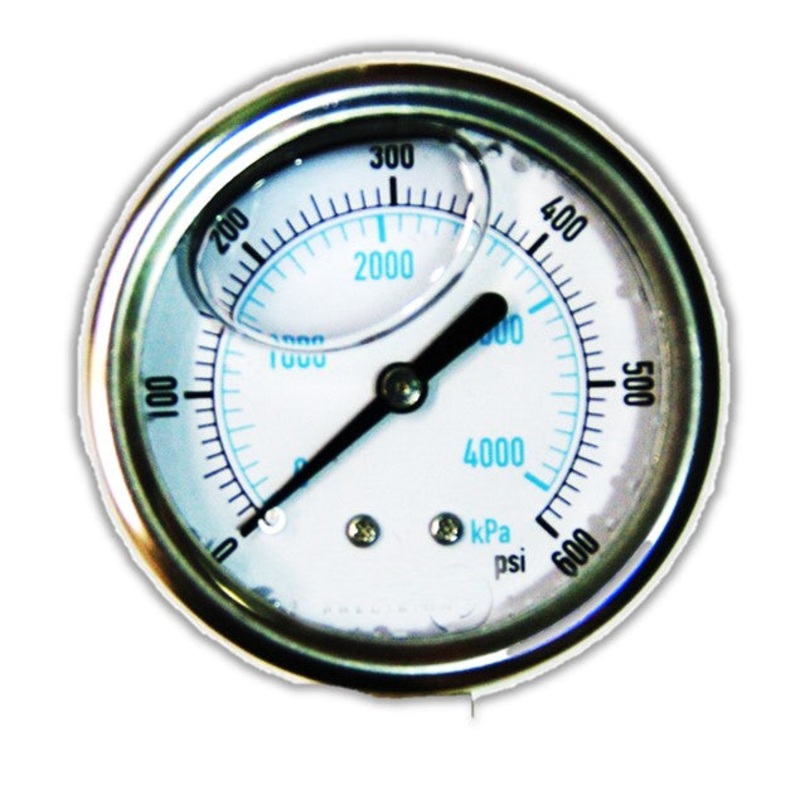

• Industrial Stainless Steel Liquid Filled 2-1/2″ Pressure Gauge
• 4-1/2″ Process Pressure Gauges (NACE)
• Contractor Pressure Gauge (H.V.A.C.)
• Tridicator Temperature and Pressure Gauges

Hg to 0 vac/kPa 150A01 151A01 200A01-125 201A01-125 200A01-250 201A01-250 250A01 251A01 400A01 401A01 -30 in Hg to 15 psi/kPa 250A02 251A02 400A02 401A02 -30 in Hg to 30 psi/kPa 250A03 251A03 400A03 401A03 -30 in Hg to 60 psi/kPa 250A04 251A04 400A04 401A04 -30 in Hg to 100 psi/kPa 250A05 251A05 400A05 401A05 -30 in Hg to 160 psi/kPa 250A06 251A06 400A06 401A06 -30 in Hg to 200 psi/kPa 250A07 251A07 400A07 401A07 -30 in Hg to 300 psi/kPa 250A08 251A08 400A08 401A08 0 to 15 psi/kPa 150A09 151A09 200A09-125 201A09-125 200A09-250 201A09-250 250A09 251A09 400A09 401A09 0 to 30 psi/kPa 150A10 151A10 200A10-125 201A10-125 200A10-250 201A10-250 250A10 251A10 400A10 401A10 0 to 60 psi/kPa 150A11 151A11 200A11-125 201A11-125 200A11-250 201A11-250 250A11 251A11 400A11 401A11 0 to 100 psi/kPa 150A12 151A12 200A12-125 201A12-125 200A12-250 201A12-250 250A12 251A12 400A12 401A12 0 to 160 psi/kPa 150A13 151A13 200A13-125 201A13-125 200A13-250 201A13-250 250A13 251A13 400A13 401A13 0 to 200 psi/kPa 150A14 151A14 200A14-125 201A14-125 201A14-125 BSPT 200A14-250 201A14-250 250A14 251A14 400A14 401A14 0 to 300 psi/kPa 150A15 151A15 200A15-125 201A15-125 200A15-250 201A15-250 250A15 251A15 400A15 401A15 0 to 400 psi/kPa 150A23 151A23 200A23-125 201A23-125 200A23-250 201A23-250 250A23 251A23 400A23 401A23 0 to 600 psi/kPa 150A16 151A16 200A16-125 201A16-125 200A16-250 201A16-250 250A16 251A16 400A16 401A16 0 to 1,000 psi/kPa 150A17 151A17 200A17-125 201A17-125 200A17-250 201A17-250 250A17 251A17 400A17 401A17 0 to 1,500 psi/kPa 250A18 251A18 400A18 401A18 0 to 2,000 psi/kPa 250A22 251A22 400A22 401A22 0 to 3,000 psi/kPa 250A19 251A19 400A19 401A19 0 to 5,000 psi/kPa 400A20 401A20
