Description:

Brass body & neoprene core
500 PSI Rated
MNPT
Blue strap
Length: 1.5″

Please see Substitution, Romet Pressure and Temperature Test Plug

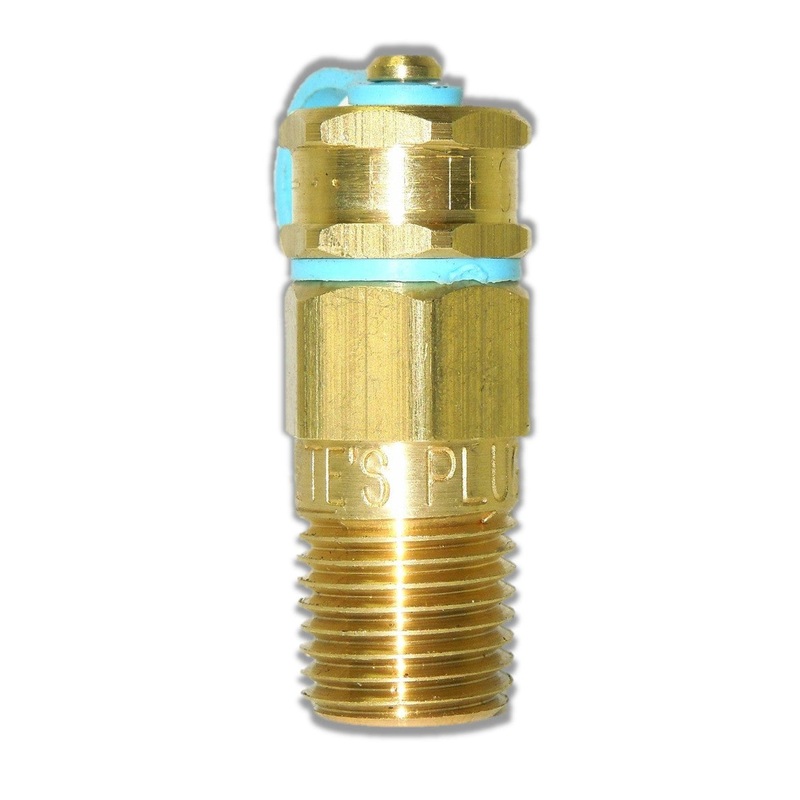

PETES PLUG II Will allow you to take pressure and temperature readings quickly and eliminate the need for leaving costly gauges or temperature indicators on the line.

Depending on the application, the Petes Plug can be
operated to a maximum of 500 PSIG and 200 or 275F
for neoprene and nordel respectively. Maximum
working pressures of 1000 PSIG can be attained with
neoprene or nordel at temperatures from 140F to -20F.

1. Cap and Gasket
2. Cap Retaining Strap
3. Two self closing valves with interaction to speed valve closure
4. Valve Body
5. Valve Retainer

Application:

Well suited for most plant and pipeline systems and is designed to eliminate gauge cocks and thermometer wells.

Hot and chilled water systems, heat exchangers, pumps, differential readings, air, gas lines, etc

Resources:

• PETE’S PLUG II Datasheet

Also See:

• PETE’S PLUGS Gauge Adaptor (Pack of 2)
