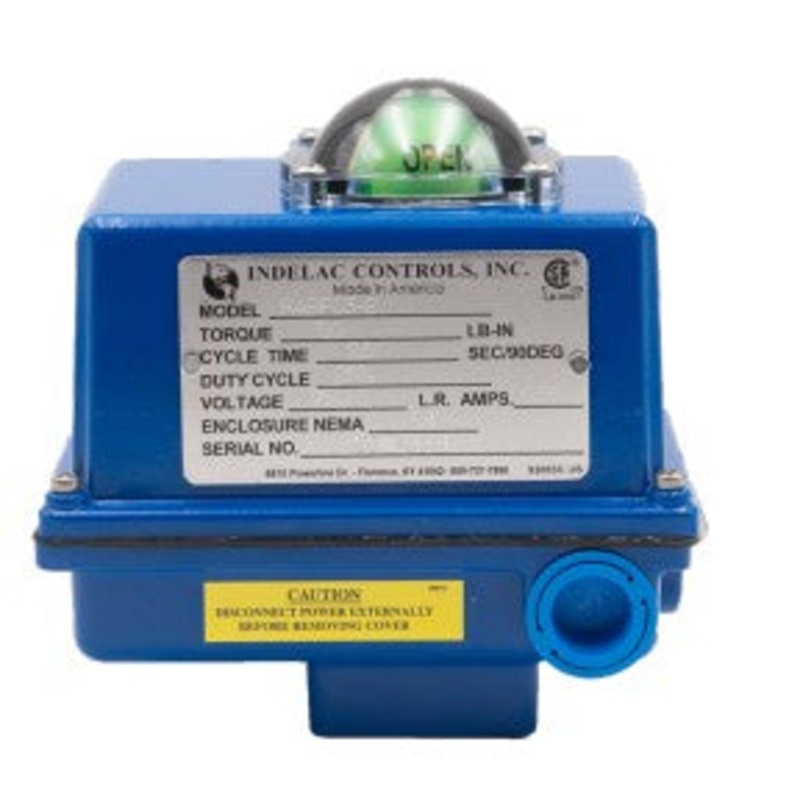

The R Series compact electric rotary actuator was specifically designed for small ball valves and dampers. This heavy-duty reversing actuator develops 100 lb in torque and rotates form 0 to 90 in 2.5 seconds. The spur gear drive train has been designed for severe applications and, as in all ICI actuators, can withstand stall conditions without suffering gear failure. The heavy-duty aluminum enclosure meets NEMA 4 specifications and has a thermally bonded ultraviolet-resistant polyester powder coating that not only enhances its appearance but also is a tough corrosion resistant coating.

Standard equipment includes 115Vac-1ph motor with thermal overload protection, stainless steel fasteners, captive cover screws and 300 series stainless steel output drive, spring friction brake, non-declutching manual override and position indicator.

Available Models:

Model: R4BF03-2 Description: INDELAC, R4BF03-2 ELECTRIC ACTUATOR,120V,100″/LBS,2.5 SEC,1/2-3/4″

Model: R4BF03-2H Description: INDELAC, R4BF03-2H ELECTRIC ACTUATOR,120V, HEATER,100″/LBS,2.5 SEC CLOSE

SPECIFICATIONS:

Output Torque: 100 Lb-In (11.30 Nm) Motor 115Vac-50/60Hz-1Ph. Std. Cycle Time: 2.5 sec/90rotation 115Vac &230Vac 2.9 sec/90 rotation 12Vdc, 24Vdc &24Vac Duty Cycle: 25% 75% Optional Voltage: 12Vdc, 24Vdc, 24Vac (24Vdc rectified) & 230Vac-50/60Hz-1Ph. with thermal overload protection and spring friction brake. Lock Rotor Current: 115Vac (std.) = 0.55 Amps.
24Vdc = 2.40 Amps.
208Vac/1Ph/60Hz = 0.72 Amps 24Vac = 2.40 Amps.
12Vdc = 2.90 Amps.
230Vac/1Ph/60Hz = 0.38 Amps. R4 Enclosure Certifications: NEMA 4 (IP66) CSA NEMA 4 (IP66) CUS RXP Enclosure Certifications: NEMA 4 (IP66) CSA
NEMA 7 CSA
NEMA 9 CSA
IEC-Ex NEMA 4 (IP66) CUS
NEMA 7 CUS
NEMA 9 CUS Output Drive: ISO 5211 F03 (9mm female star) ISO 5211 F04 (11mm female star) 300 series stainless steel. Mounting: Universal, ISO 5211 F03 or F04 mounting pad Manual Override: Available on AC Voltage Lubrication:Permanent Temperature: -40 F to +140 F (heater required at 0 F. and below). Weight: 6 to 7 Lbs. Switches:SPDT snap action, 15 Amps @ 250Vac
