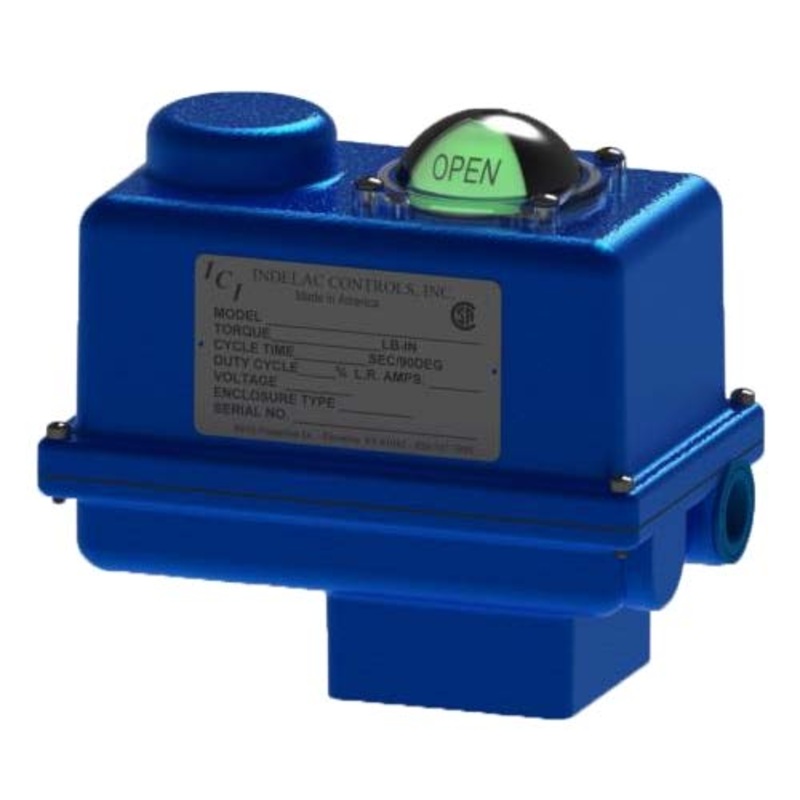

The SD series compact rotary electric actuator was specifically designed for valve sizes from to 2 and dampers that do not exceed the rated torque of the actuator. These heavy-duty reversing actuators develop 200 lbin (model SD) and 300 (model SDX) lbin torque and0 to 90 in 5 seconds. The spur gear drive train has been designed for severe applications and, as in allactuators, can withstand stall conditions without suffering gear failure. The heavy-duty die-cast aluminum enclosure meets NEMA 4 specifications and has a thermally bonded ultraviolet resistant polyester powder coating that not only enhances its appearance but also is a tough corrosion resistant coating.

Standard equipment includesmotor with thermalprotection, two limit switches wired for light indication, stainless steel fasteners, captured cover screws and 300 series stainless steel output drive, spring friction brake, non-declutching manualand position indicator.

Available Models:

Model: SD4B-5 Description: INDELAC, S4B-5 ELECTRIC ACTUATOR,120V, 200″/LBS,5 SEC CLOSE

Model: SDX4B-5H Description: INDELAC, SDX4B-5H ELECTRIC ACTUATOR,120V, HEATER, 300″/LBS,5 SEC CLOSE

SPECIFICATIONS:

Output Torque 200 Lb-In (22.6Nm) & 300 Lb-In (33.9 Nm) Cycle Time: 5 sec/90 rotation Duty Cycle: 25%, 75% or 100% Optional Voltage: 12Vdc, 24Vdc, 24Vac (24Vdc rectified) with manual reset (turn off then back on) overload protection. 230Vac-50/60Hz-1Ph.with automatic reset thermal overload protection and spring friction brake. Lock Rotor Current

115Vac. = .75 Amps., SDX 1.0 Amps.
230Vac. = .38 Amps.
12Vdc. = 4.0 Amps.
24Vdc. = 3.2 Amps.
24Vac. = 3.2 Amps. Enclosure NEMA 4 Standard
Die-cast aluminum with 300 series stainless steel captured screws and thermally bonded polyester powder coating. OPTIONAL ENCLOSURES: NEMA 4X Sand-cast aluminum with 300 series stainless steel screws and manual override shaft and thermally bonded polyester powder coating. Output Drive: ISO 5211 F05 (14mm female star) 300 series stainless steel. Mounting: Universal, ISO 5211 F05 mounting pad Manual Override: Standard except on NEMA 7 Lubrication: Permanent Temperature: -40 F to +140 F (heater required at 0 F. and below). Weight: 6Lbs. Switches: 16 A. 125/250VAC Certification: CSA NEMA 4 AVAILABLE OPTIONS: Extended duty (75%) motor (cycle time = 10 sec./90 ), maximum of 4 auxiliary switches, power-off brake, declutching manual override with handwheel, feedback potentiometer, 4-20mA positioner (equipped with 24V dc power supply for transmitter), 4-20mA position transmitter (requires 24V dc power supply), compartment heater, heater and thermostat, breather, three-position control, light indication, two-wire control, timer, speed control, remote/off/local control panel, electronic torque sensor and one additional NPT conduit entry.
