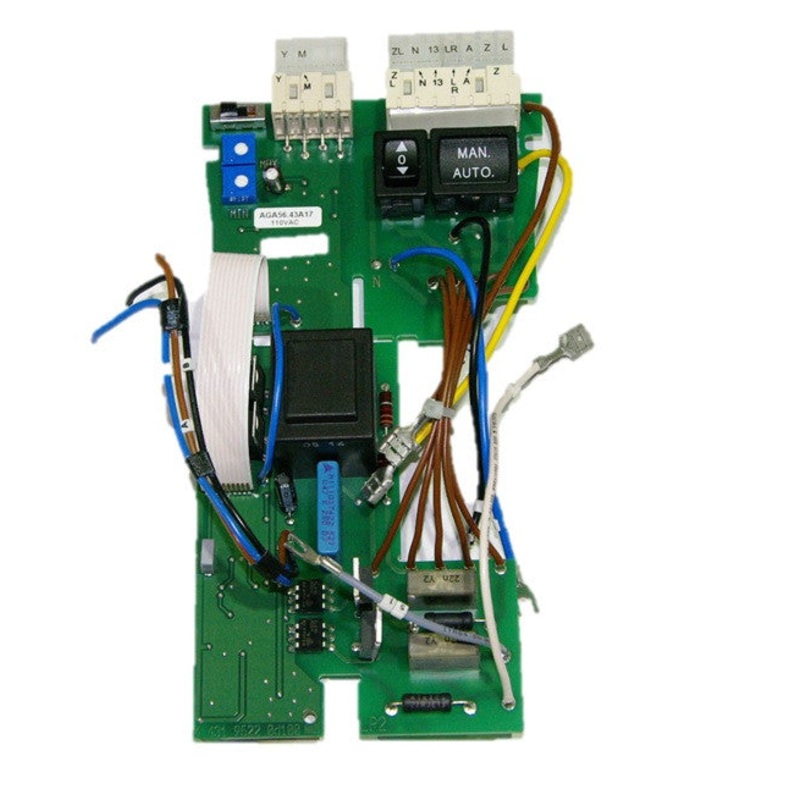

AGA56 Electronic Circuit Boards are Accessories/Components for the SQM5 Actuators

BULK ORDERS AND LESS COMMON PRODUCTS MAY REQUIRE ADDITONAL TIME FOR SHIPMENT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY, AND FOR PART NUMBERS NOT LISTED

All Models:

• AGA56.1A97 – 24-250 Vac (A: Line Voltage input) board for SQM5x.xxxxxAx
• AGA56.9A87 – 24 Vac (Z: Multi input) board for SQM5x.xxxxxZx
• AGA56.9A17 – 110 Vac (Z: Multi input) board for SQM5x.xxxxxZx
• AGA56.9A27 – 220 Vac (Z: Multi input) board for SQM5x.xxxxxZx
• AGA56.41A87 – 24 Vac (G: 4 to 20 mA input) board for SQM5x.xxxxxGx
• AGA56.41A17 – 110 Vac (G: 4 to 20 mA input) board for SQM5x.xxxxxGx
• AGA56.41A27 – 220 Vac (G: 4 to 20 mA input) board for SQM5x.xxxxxGx
• AGA56.42A87 – 24 Vac (H: 135 Ohm input) board for SQM5x.xxxxxHx
• AGA56.42A17 – 110 Vac (H: 135 Ohm input) board for SQM5x.xxxxxHx
• AGA56.42A27 – 220 Vac (H: 135 Ohm input) board for SQM5x.xxxxxHx
• AGA56.43A87 – 24 Vac (K: 1-10 Vdc input) board for SQM5x.xxxxxKx
• AGA56.43A17 – 110 Vac (K: 1-10 Vdc input) board for SQM5x.xxxxxKx
• AGA56.43A27 – 220 Vac (K: 1-10 Vdc input) board for SQM5x.xxxxxKx

Resources:

• SQM5 Actuators Technical Instructions
• AGA56 Control Boards Technical Literature
