PLEASE ALLOW ADDITIONAL TIME FOR SHIPMENT OF THIS PRODUCT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY.

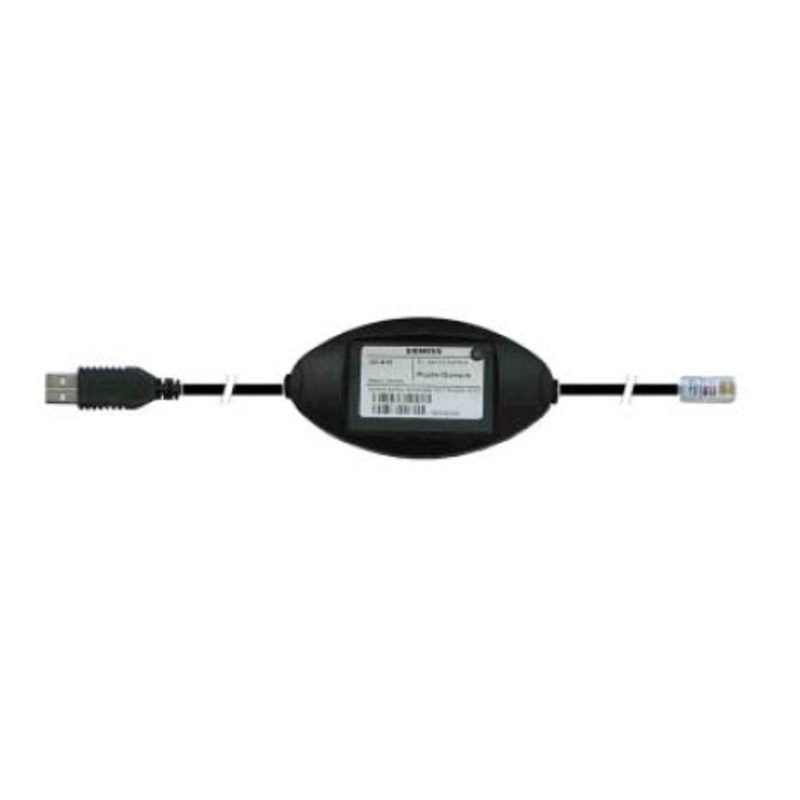

The OCI 410 is a microprocessor-based interface featuring galvanic isolation, whichenables the LME7 and LMV3 basic units to be connected to a PC.

On the PC side, the OCI410 is to be connected to the USB port, on the basic unitside to the BCI port.

In connection with the ACS410 PC software, the following functions are provided:
– Visualization of plant states
– Parameterization of the basic units
– Logging

Available Models:

• OCI410.20– Version for making diagnostics, ACS410 PC tool
• OCI410.30– Version for the heating engineer (standard), parameterization with the ACS410 PC tool, parameter changes on password level Heating engineer can be made
• OCI410.40– OEM version, parameterization with ACS410 PC tool, parameter changes on password level OEM and heating engineer can be madePlease allow additional time for shipping

Resources:

• OCI410 Interface Technical Instructions
• ACS410 Software Operating Instructions

Software:
