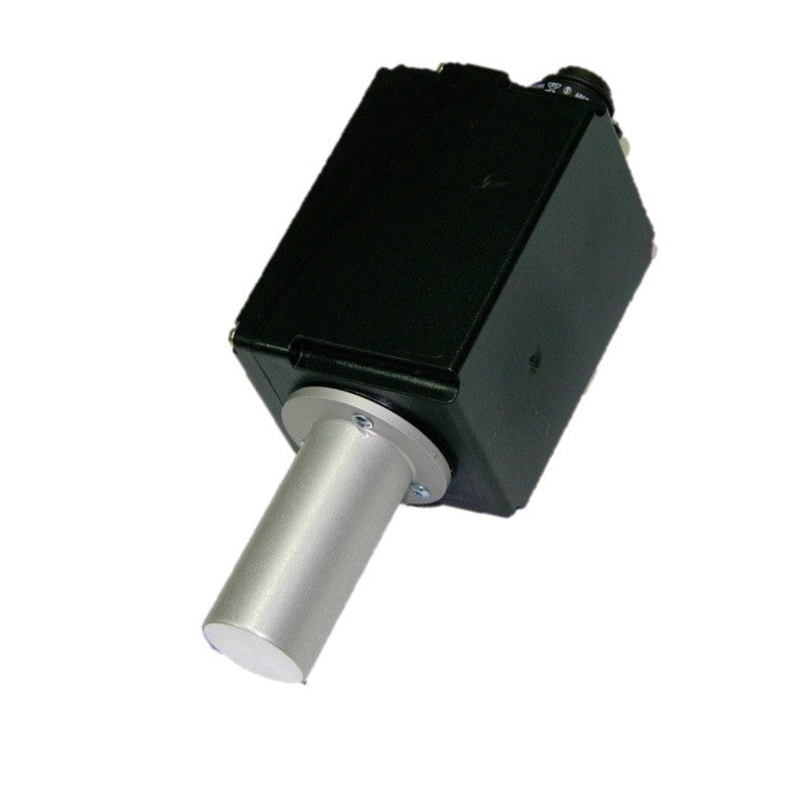

The Flame Detectors are used for the supervision of gas flames, yellow- or blue- burning oil flames and for ignition spark providing. Use in LME andLMV Burner Management System

Available Models:

• QRA73.A17 – Normal Sensitivity, 125mm Detector Tube, AC 120 V, spare UV Tube
• QRA73.A27 – Normal Sensitivity, 125mm Detector Tube, AC 230 V, spare UV Tube
• QRA75.A27 – Normal Sensitivity, 69mm Detector Tube, AC 230 V, spare UV Tube
• QRA75.A17 – Normal Sensitivity, 69mm Detector Tube, AC 120 V, spare UV Tube

Accessories:

• AGG16.U – Right angle adaptor
• AGM23U Connection Cable
• AGR 450240650 High Sensitivity UV Cell

Resources:

• QRA Flame Detectors Technical Literature.
• LMV5 Burner Management System Quick Start Guide / Technical Instructions
• LMV5 Burner Control Tutorial / Training Videos
• LME7 Technical Literature
• LME7 Flame Safeguard Tutorial / Training Videos
