Description:

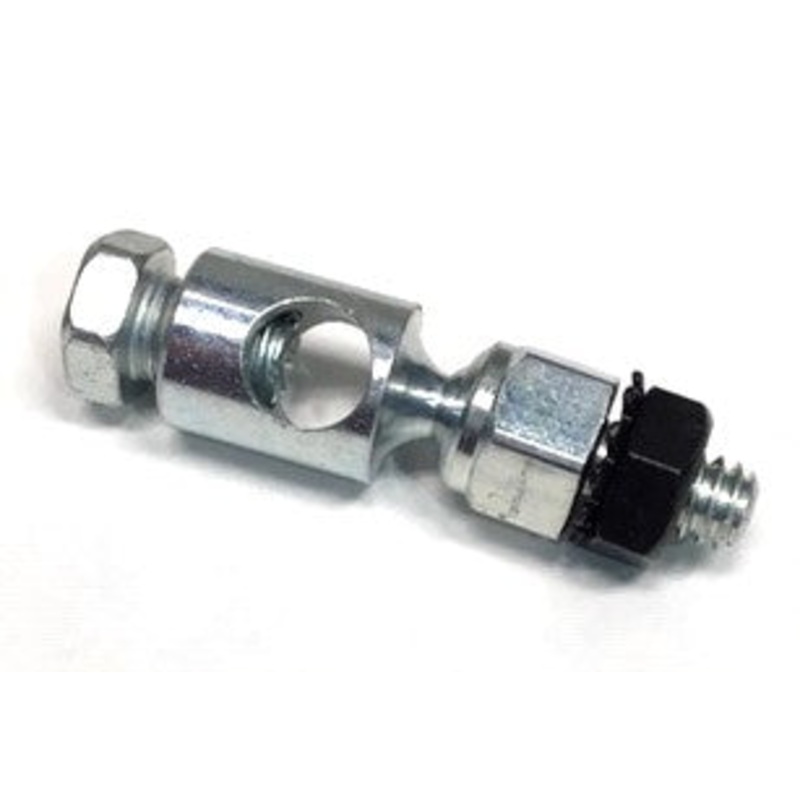

A rod end is available for use with any crank arm utilizing the thin arm with holes or the thin arm with slot. The rod end has a -20 stud and comes with the corresponding nut and lock washer for fastening the rod end to the arm. The rod end has a 0.328 hole for use with a 1/4 or 5/16 connecting rod. A set screw is provided to connect the rod end to the connecting rod.

Resources:

• CA Series Crank Arm Technical Literature
