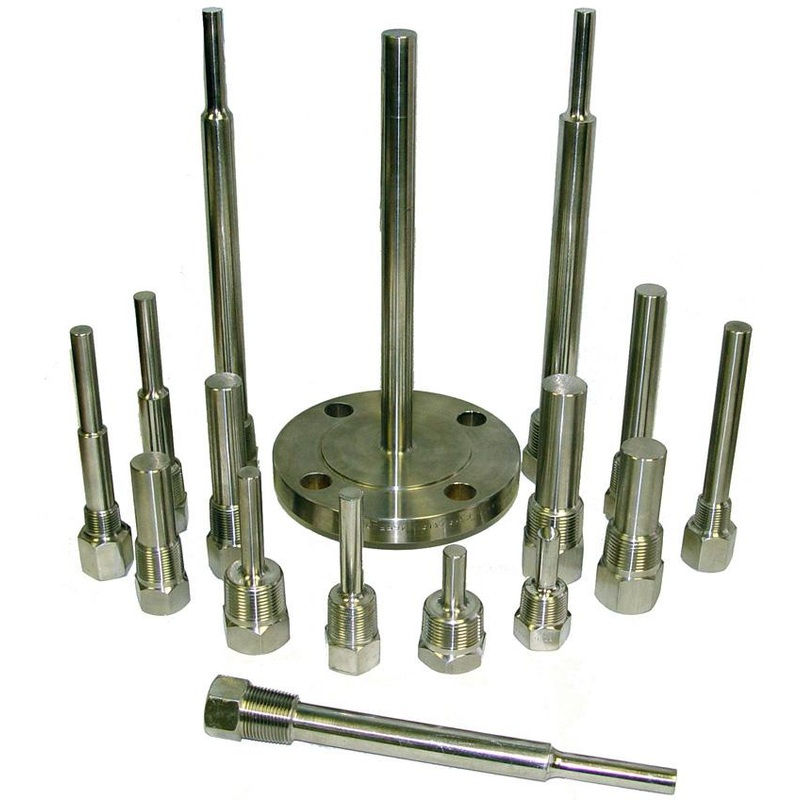

This device is used to protect a thermometer / thermocouple / RTD from any pressure in the process, and allows replacement of the instrument without shutting down the system.

USE THE TABLE BELOW TO SELECT ONE OF OUR AVAILABLE THERMOWELL UNITS ORCONTACT USFOR MORE OPTIONS ORREGARDING INFORMATIONABOUT MORE QUANTITY BASED DISCOUNTS!

PLEASE ALLOW ADDITIONAL TIME FOR SHIPMENT OF THIS PRODUCT.CONTACT USVIA PHONE OREMAILTO REQUEST MORE INFORMATION ON AVAILABILITY.

Specifications:

Standard Bore Sizes
0.260, or 0.702″
Process Connections
NPT threaded or Flanged (RF, FF & RTJ)
Standard Materials
316SS
Optional Materials
Brass or naval brass, aluminum, carbon steel, Chrome-moly, 304SS, 316LSS, alloy-20, inconel, Monel, nickel, titanium, hastelloy B or C & Teflon
Optional
Lagging Extensions, Stainless steel plug and chain, full penetration weld on flange, Teflon or Kynar coating, MTR test reports & hydrostatic internal testing
Available Stem Lengths
2 through 12
Process Connections
1/2, 3/4 & 1 threaded NPT, 150#, 300# & 600# flanged
900# RTJ & 150# RTJ
