The beauty of woodworking is experienced by those who work hard at it and who constantly look for inspiration to improve. Using a T-40 enhances the enjoyment and allows you to aspire to new levels.

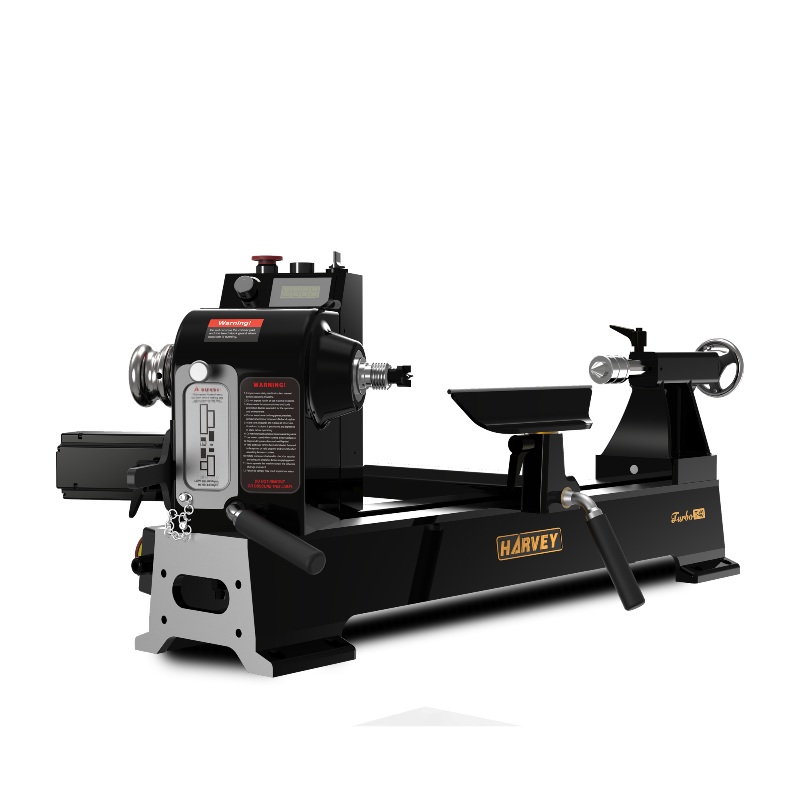

The Harvey T-40 Woodworking Lathe is unique in that it is considered at a 14″ (360 mm) swing to be a smaller lathe.

However, the T-40 has been designed on the scale of a large lathe in regards to casting size, power, and controls. TheT-40 incorporates an Industrial Servo Motor, commonly used on metal working lathes for its powerful torque, whichallows the T-40 a greater torque and speed capacity. The raw materials of each part of the lathe are all select,premium materials for both aesthetics and practical functions.

The body of the T-40 has been painted with a stoving varnish providing a durable, long-lasting finish that offers moreresistance against scratches, chipping, wear, and fading. Even the logos and nameplates have been upgraded.

The fit and finish are engineered and crafted not only for a flawless operation but also for anunparalleled personal experience. The T-40 lets you experience the “fine” in fine woodworking.

One-of-a-kind Mini Monster
Spindle Drive with Servo Motor
The 220V Industrial Servo Spindle Motor which isnormally used on metalworking machining centers solvesthe issues of insufficient torque and drag found on most
small lathes in the market.
With a marvelous 300% overload capacity and an instantresponse to torque demands, the T-40 runs smoothly inoperation.

Consistent TurningSpeed anywhere in theRange
The design of the servo motor and drive system is not onlystrong, but strong along the entire range from 60-4300RPM.
Whether working near the top end or the low end, thesystem will continue to supply enough power to meet yourdemand without the surging that you get with some lathes.
This is accomplished through the 2 micro secondresponse time which is 100 quicker than many machines.
So for truly smooth operating conditions, even at thelowest speeds, choose the T-40 lathe.

Power with an Instant Response
The servo motor is managed by an instant responsesystem within the drive computer which reacts to changesin the torque placed on it.
When turning, the changing torque level is measuredconstantly and the servo motor will speed up or slow downin order to provide a smooth, consistent operating speed.
The servo motor can provide up to 3HP at its peak, anincredible 12. 54 Nm (Newton Meters). This means that theT-40 is capable of handling almost any kind of difficult cut.

Stability and Versatility
The T-40 has impressive capacities: 14″ (360mm) over the bed; and 24 (610mm) between the centers.
The head also swivels up to 90degrees for larger diameter bowls.
The T-40 is an awesome 178lbs. (80kg) providing it with the mass needed for stability and dampeningvibrations in almost any operation.

Attention to the Details Makes for A Unique Experience

Aesthetically Designed ToolRest
The shape of the tool rest hasbeen redesigned for operatorease and comfort.

Upgraded Live Center forMore Stability ofWorkpiece
The live center is now made ofcarbon alloy tool steel.
With its hardness, resistanceto abrasion and ability to retainshape at increasedtemperatures, the live centernow offers more stability andaccuracy.

Upgraded Handwheel
The handwheel of the headstock has been enlarged both insize and length for operatorease and safety.
