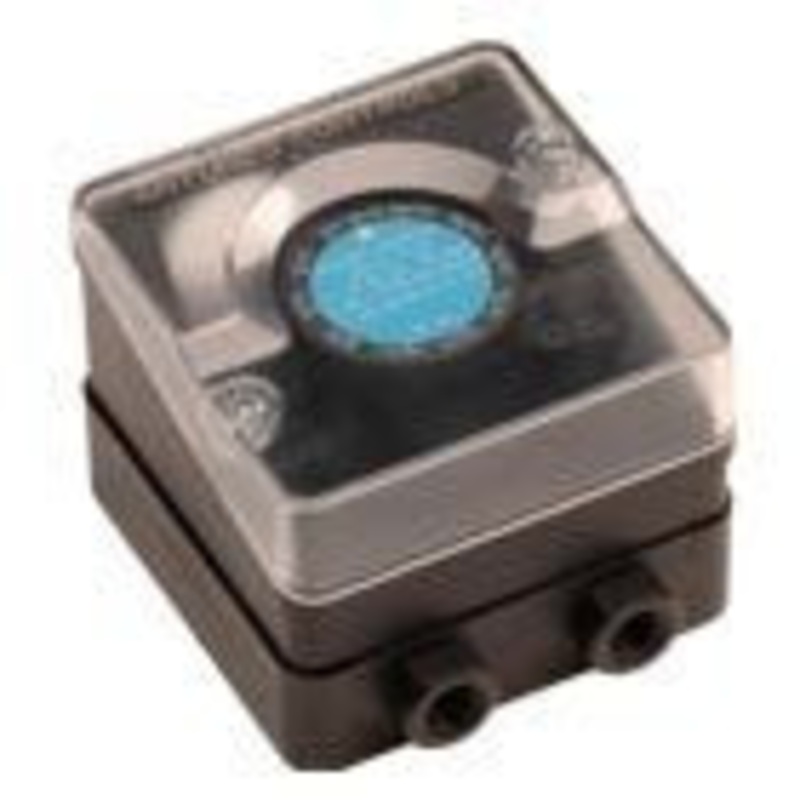

The Versa Plus Air is a highly accurate air pressure switch that monitors positive, vacuum, or differential air pressure. The integrated contacts make or break circuits to a desired set point. The omega spring design provides repeatability and accuracy. It is compact, easy to install, and available in various mounting configurations.

• Compact design
• Large adjustment knob provides set point indication
• Available with NPT base or hose barb base
• Cost-effective pricing
• Custom design per OEM specifications available, please call or email for more information

There are 6 available Models:

1. FAN 1.2 0.08″ – 0.5″ WC (0.2 – 1.2 mbar) with NPT Connection 8281001003,
2. FAN 0501″ – 20″ WC (2.5 – 50 mbar) with NPT Connection 8281003050,
3. FAN 0100.5″ – 4″ WC (1.2 – 10 mbar) with NPT Connection8281002010,
4. FAB 1.20.08″ – 0.5″ WC (0.2 – 1.2 mbar) with Hose Barb Connection 8291001001,
5. FAB 0501″ – 20″ WC (2.5 – 50 mbar) with Hose Barb Connection 8291003050,
6. FAB 0100.5″ – 4″ WC (1.2 – 10 mbar) with Hose Barb Connection8291002010,

Technical Literature:

• Versa Plus Air Pressure Switch Datasheet
• Versa Plus Air Pressure Switch Installation Instructions
